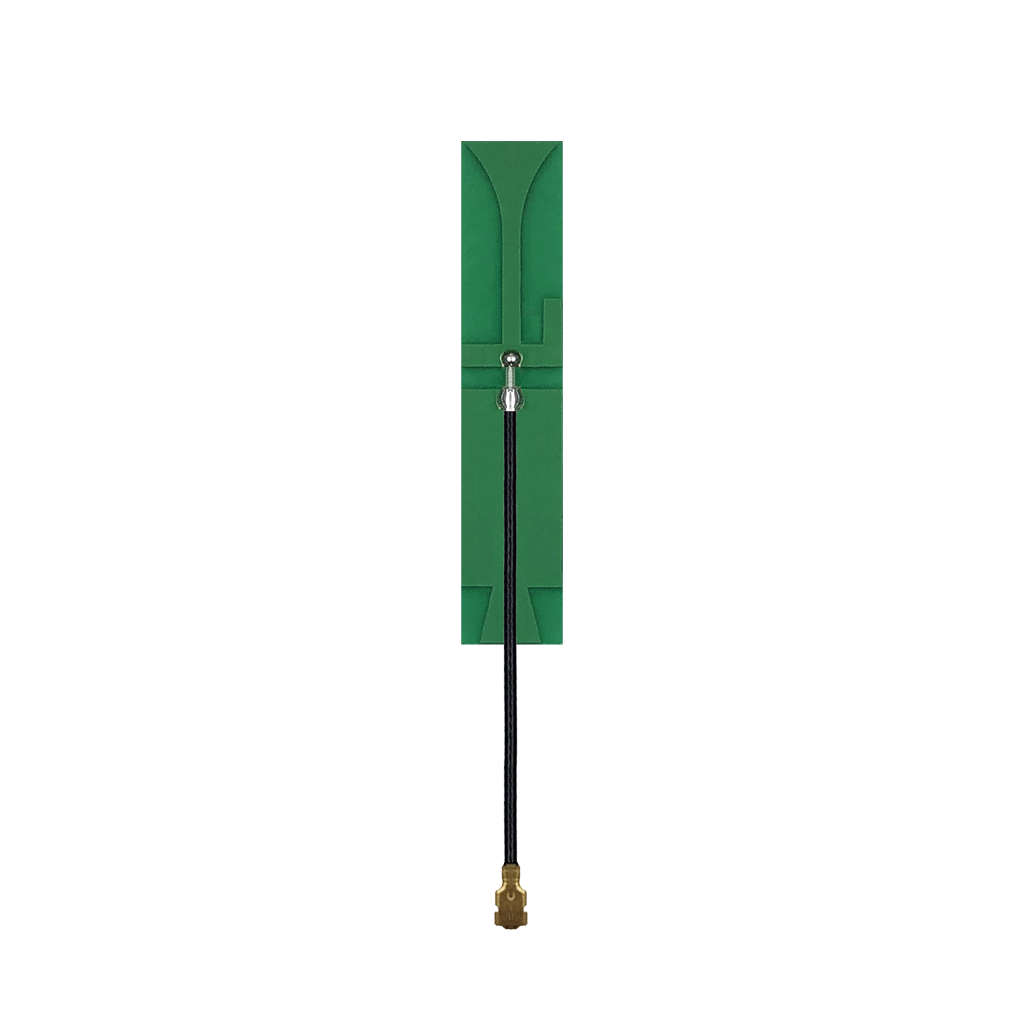

2.4G antenna

Frequency (MHz)

Gain (dBi)

Efficiency (%)

2400    MHz

-0.21

17.37

2410    MHz

0.92

21.67

2420    MHz

1.45

23.87

2430    MHz

1.57

23.9

2440    MHz

1.77

24.32

2450    MHz

1.79

23.87

2460    MHz

1.59

22.34

2470    MHz

1.29

20.44


Hotline:0755-23035723

Detail

1.0 Efficiency and Gain

1.1 Test system



1.1 Efficiency and Gain



Frequency (MHz)

Gain (dBi)

Efficiency (%)

2400    MHz

-0.21

17.37

2410    MHz

0.92

21.67

2420    MHz

1.45

23.87

2430    MHz

1.57

23.9

2440    MHz

1.77

24.32

2450    MHz

1.79

23.87

2460    MHz

1.59

22.34

2470    MHz

1.29

20.44

2480    MHz

0.86

18.37

2490    MHz

0.11

15.65

2500    MHz

-0.62

13.24











 1.2 Antenna radiation





  1.3 Antenna polarization direction
